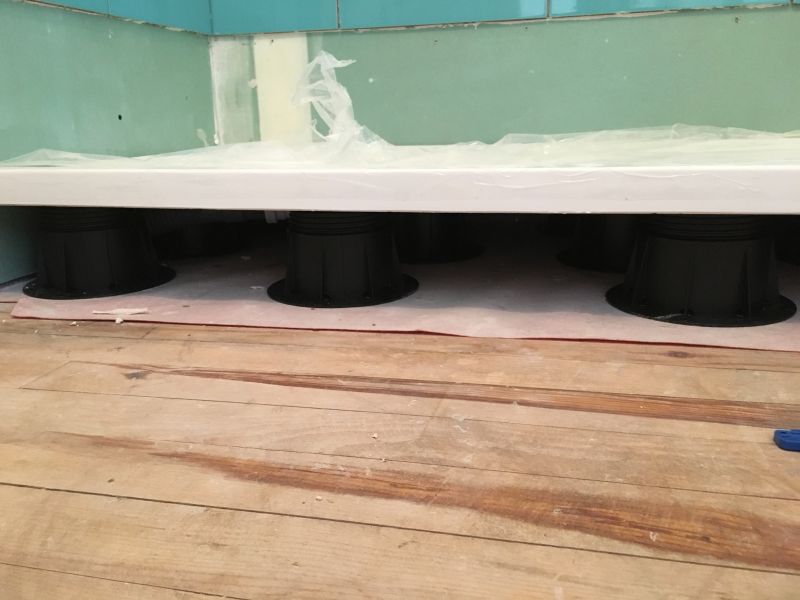

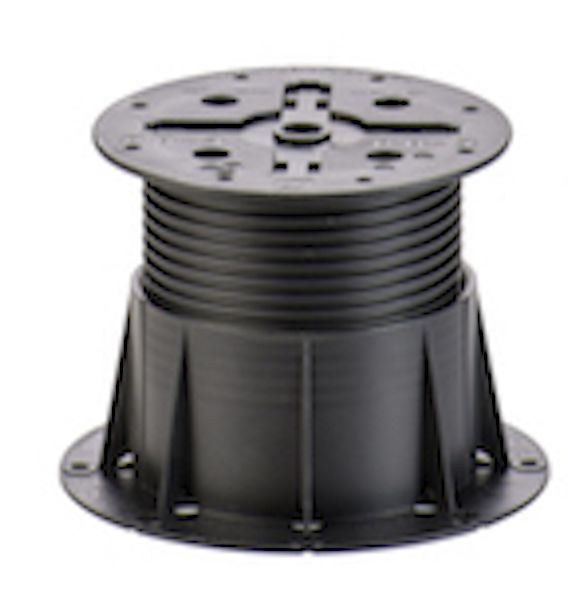

Shower tray feet are essential accessories for installing a shower tray. They allow you to raise the shower tray, creating sufficient space for the drain and pipes.

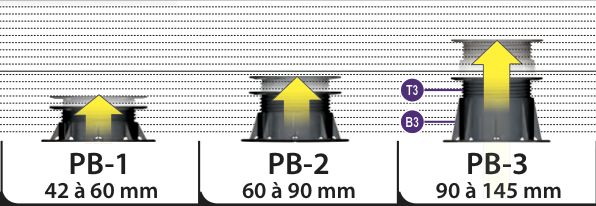

The height of these shower tray feet is adjustable. The different models offer an adjustment range from 18 mm to 315 mm, to accommodate different configurations.
The shower tray feet are made of Polypropylene Copolymer (PPC), with a material thickness of 3 to 4.5 mm. The shower tray feet are made of 80% recycled polypropylene copolymer (PPC), filled with 20% talc and Master Batch Black (pigment), and are 100% recyclable.

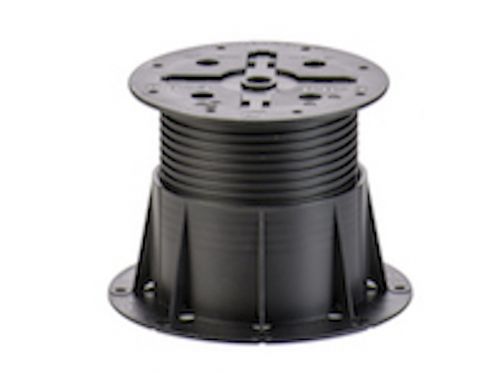

Pedestal dimensions:
Head = 170 mm diameter
Base = 197 mm diameter
Applications:
Can support all types of materials: wood, stone, ceramic, composite materials, metal, fiberglass, etc. Can be used on any stable base, including over insulation panels.
Attachment to the floor is done with screws or glue (elements not included).

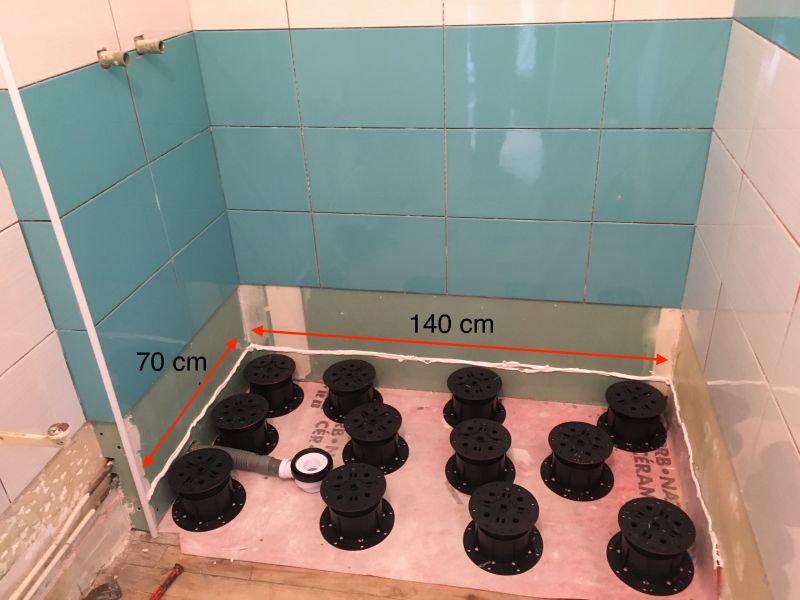

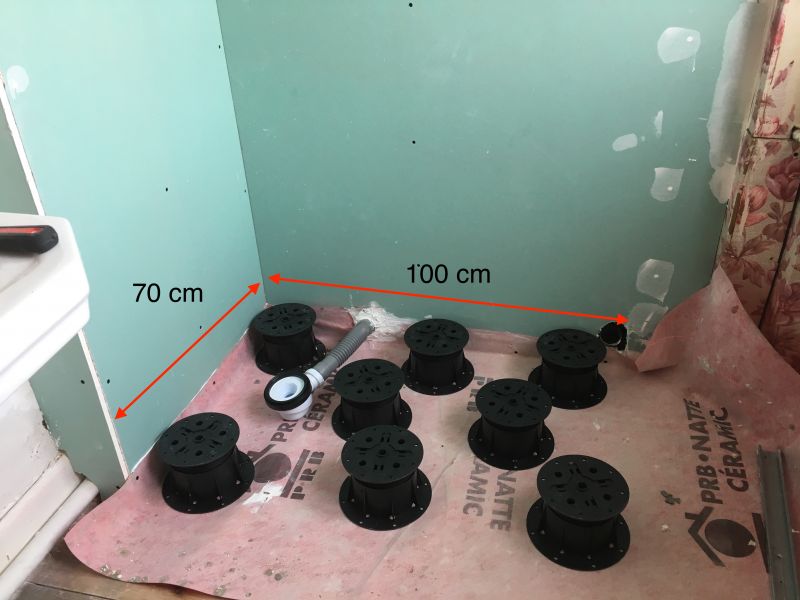

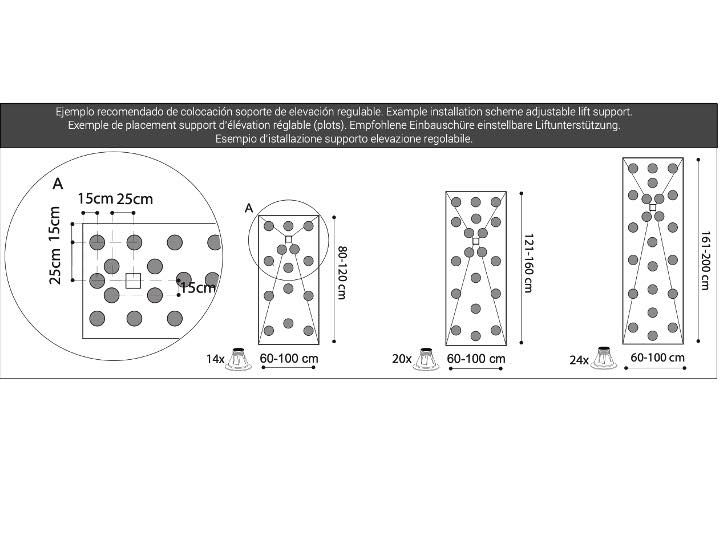

We recommend the following for shower tray dimensions:
- 80x80, 90x90, 100x100: 10 units
- 120x90, 130x90: 12 units
- 140x90, 150x90: 15 units
- 160x90, 170x90: 18 units
- 180x90, 190x90: 20 units
Sold individually. Minimum order: 4 units, or 4 x €10 = €40.
Delivery time: 8-10 days
Adjustable feet / pedestals for shower tray
Shower tray feet are essential accessories for installing a shower tray. They allow you to raise the shower tray, creating sufficient space for the drain and pipes.
The height of these shower tray feet is adjustable. The different models offer an adjustment range from 18 mm to 315 mm, to accommodate different configurations.
The shower tray feet are made of Polypropylene Copolymer (PPC), with a material thickness of 3 to 4.5 mm. The shower tray feet are made of 80% recycled polypropylene copolymer (PPC), filled with 20% talc and Master Batch Black (pigment), and are 100% recyclable.
Pedestal dimensions:
Head = 170 mm diameter
Base = 197 mm diameter
Applications:
Can support all types of materials: wood, stone, ceramic, composite materials, metal, fiberglass, etc. Can be used on any stable base, including over insulation panels.
Attachment to the floor is done with screws or glue (elements not included).
We recommend the following for shower tray dimensions:
- 80x80, 90x90, 100x100: 10 units
- 120x90, 130x90: 12 units
- 140x90, 150x90: 15 units
- 160x90, 170x90: 18 units
- 180x90, 190x90: 20 units
Sold individually. Minimum order: 4 units, or 4 x €10 = €40.
Delivery time: 8-10 days
Loading...

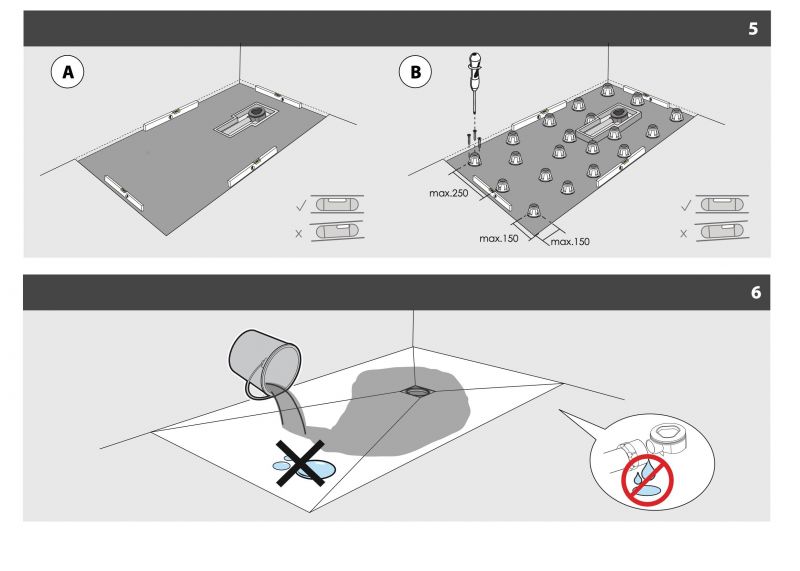

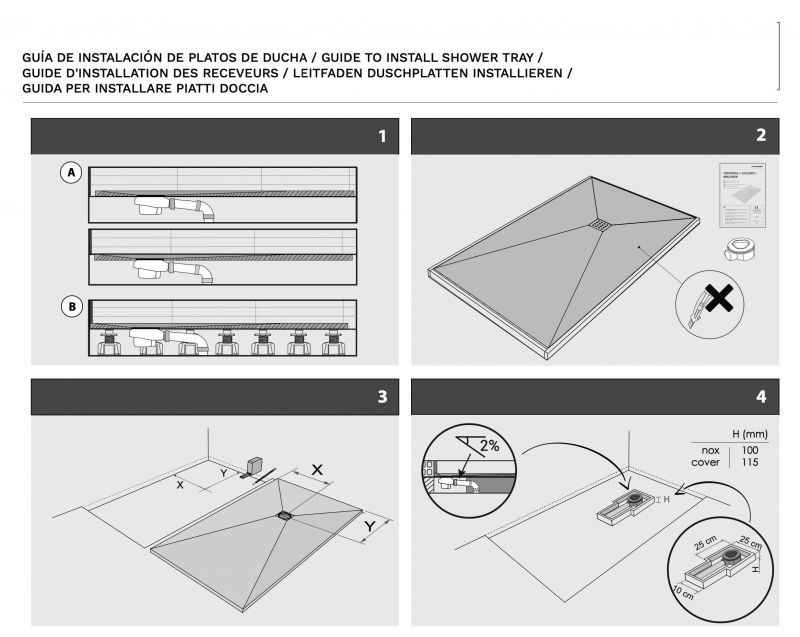

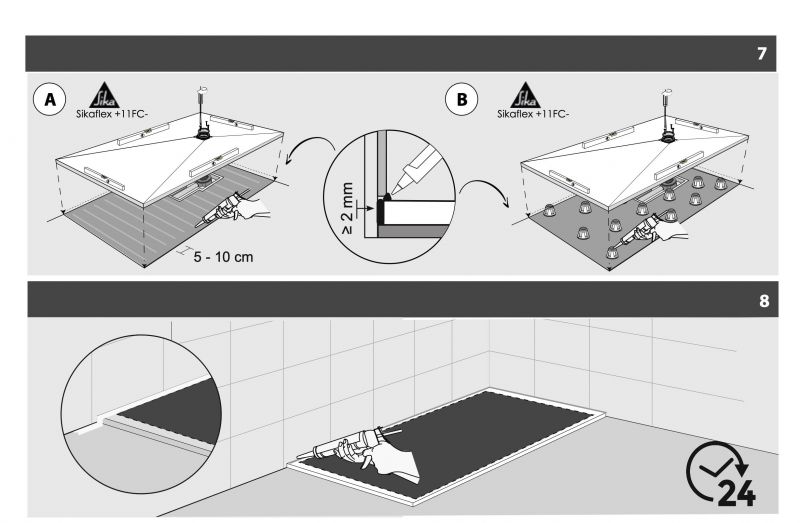

MANUEL INSTALLATION
